RV SEWER CLEANING KIT

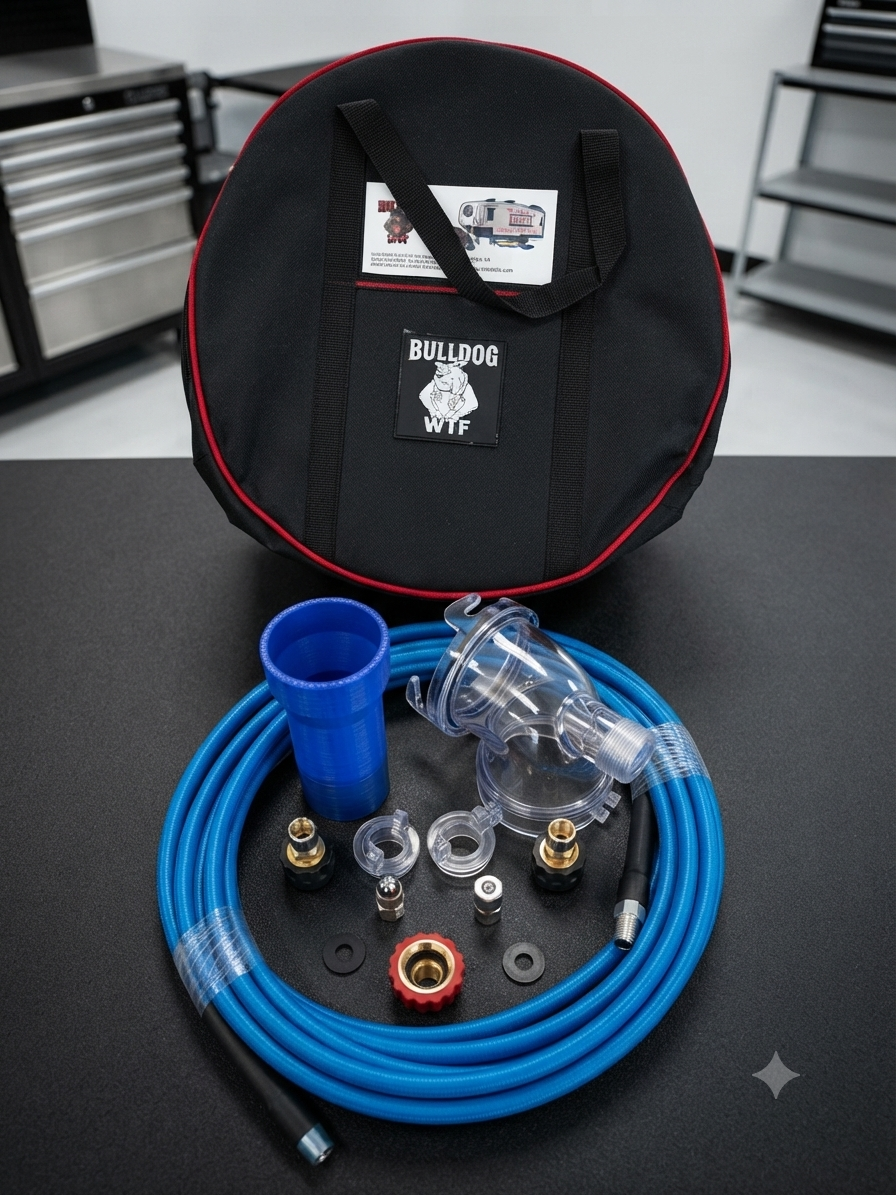

US$135.00Attachments
- 15" WATERPROOF STORAGE BAG WITH INNER AND OUTER TOOL POCKETS
- 50 FOOT HIGH PRESSURE HOSE W/ 1/4" NPT FITTINGS
- 1 — 6 BACKWARD 1 FORWARD PRESSURE NOZZLE, 1 SPINNER NOZZLE
- 2 COMPRESSION WASHERS FOR ELBOW ATTACHMENT
- SOFT SILICONE BOOT FOR TOILET BALL VALVE STABILIZING
- 3/4" GHT GARDEN HOSE ATTACHMENT
- 1 M22 14F 4500PSI, 1 M22 15F 5000PSI PRESSURE WASHER ATTACHMENTS
- PSI STAMP ON BEVEL OF ATTACHMENT HEAD
- ELBOW WITH PRESSURE HOSE INLET AND TENSION NUT
OPERATING INSTRUCTIONS
FIRST STEPS
- 1SHUT OFF WATER TO TRAILER
- 2MAKE SURE YOU ARE HOOKED TO SEWER, HOOK CLEAR ELBOW TO OUTLET & HOSE
- 3HOOK GARDEN HOSE TO PRESSURE HOSE DIRECT OR TO PRESSURE WASHER
- 4IF PRESSURE WASHER CLEANING, HOOK PRESSURE HOSE TO PRESSURE WASHER. NOTE: THE 2 PRESSURE WASHER ATTACHMENTS — M22 14F 4500PSI FIT GAS/SOME ELECTRIC PRESSURE WASHERS, 15F 5000PSI FIT THE REMAINDER ELECTRIC.
- 5CHOOSE A MODE OF CLEANING
MODE 1 — TOILET DOWN
- 1OPEN BALL VALVE AND PLACE SILICONE BOOT IN DRAIN RELEASE PEDAL
- 2AFFIX PRESSURE NOZZLE TO HOSE — EITHER WILL WORK
- 3THREAD HOSE THROUGH THE BOOT INTO THE TANK. WHEN IT HITS BOTTOM YOU CAN MANIPULATE THE HOSE TO MANEUVER NOZZLE INTO POSITION
- 4TURN ON WATER 1ST. IF ATTACHED TO PRESSURE WASHER, TURN ON 2ND
- 5START MANIPULATING HOSE IN THE TANK GENTLY. LET THE WATER WORK
- 6KEEP AN EYE ON TANK LEVEL. IF YOU KNOW TANK CAPACITY AND FLOW RATE YOU CAN TIME IT; IF NOT, SIGHT AND SOUND. FILL TANK FULL AND THEN DUMP. WHEN DUMPING IT IS IMPORTANT TO WATCH WHAT IS COMING OUT AND HOW FAST. REPEAT UNTIL CLEAN FLOW.
MODE 2 — ROOF VENT
- 1REMOVE ROOF VENT CAP
- 2FOLLOW STEPS 2 THROUGH 6 ABOVE
- 3THIS IS A SMALLER PIPE SO A LITTLE MORE FINESSE IS REQUIRED. NOTE: AT ANY TIME THAT THE HOSE FEELS CAUGHT OR STUCK, DO NOT START YANKING ON IT. IF YOU SHUT OFF PRESSURE WASHER AND/OR WATER, THE HOSE RELAXES AND YOU CAN WIGGLE IT OUT. NOTHING ABOUT THIS SYSTEM NEEDS MANHANDLING!
MODE 3 — RV WASTE OUTLET
- 1REMOVE PRESSURE NOZZLE FROM HOSE
- 2SLIDE HOSE THROUGH ELBOW TENSION NUT, NUT THREADS FACING NOZZLE END
- 3SLIDE COMPRESSION GASKET ON TO HOSE
- 4SLIDE HOSE END INTO ELBOW
- 5ATTACH 1 FORWARD 6 BACK NOZZLE TO HOSE (BEST FOR THIS APPLICATION)
- 6PLACE WASHER IN RECEIVER AND THREAD TIGHTENING NUT. TIGHTEN UNTIL HOSE BARELY MOVES. A BIT OF DISH SOAP ON THE HOSE HELPS IT SLIDE WITHOUT LOSING THE SEAL.
- 7ATTACH ELBOW TO SEWER OUTLET AND THE SEWER HOSE TO ELBOW
- 8TURN ON WATER THEN PRESSURE WASHER
- 9OPEN TANK DUMP VALVE AND THREAD HOSE INTO TANK
- 10MANIPULATE THE HOSE AS MUCH AS IS NECESSARY UNTIL WATER RUNS CLEAN
- 11TURN OFF PUMP AND WATER INTERMITTENTLY AND CHECK YOUR TANK SENSORS — IT IS USUALLY AFTER THIS PROCEDURE THAT THEY WILL READ CORRECTLY AGAIN.
- 12THIS IS AN IMPORTANT MODE AS ALL TANKS SLOPE TO THE OUTLET AND THIS NOZZLE HELPS PULL OUT THE WASTE AT THE OUTLET WHERE IT GATHERS.
- 13PULL THE HOSE BACK TO THE ELBOW, CLOSE THE GATE VALVE AND HAVE A DRINK
Important Notes
- Although this is a fairly clean system, rubber gloves and Lysol wipes are not a bad idea. Cleaning the system thoroughly afterwards is highly recommended.
- We have designed the elbow with a plug so you can leave it on while set up at a full service park.
- GENTLE! Let the system do the work. If you need to force it, back off and start again. These tanks are hard to damage but why risk it.
- Some tanks are designed with too many turns in the outlet pipe. These ones are generally cleaned through the toilet as it is difficult to get into the tank from below.
- We will answer questions by email but if you are in a bind, call and we can walk you through a solution.
- In Mode 1 and 2, remember to turn off pressure and water before removing hose if you want to remain dry.
- Remember: a clean tank smells better and will help prevent damage and plugging.
